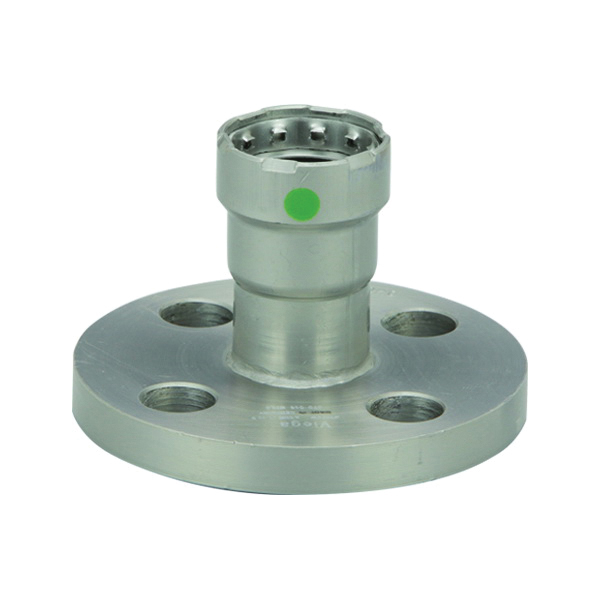

MegaPress® 25775 Model 4859.5, Pipe Flange, 1-1/4 in, Press, Carbon Steel, EPDM Seal, Import
CBPN: 203942
UPC:691514257754
MPN:25775
Price:
$121.28 / EA
DESCRIPTION
MegaPress® Pipe Flange, Fitting/Connector Type: Flange, Series: Model 4859.5, 1-1/4 in Nominal, Press, -40 To 180 deg F, Carbon Steel, EPDM Seal, Import
Viega MegaPress® is a carbon steel press system and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress® fittings for black iron pipe reduce installation time and eliminate messy cutting oils.
MegaPress® 25775 Model 4859.5, Pipe Flange, 1-1/4 in, Press, Carbon Steel, EPDM Seal, Import
CBPN: 203942
MPN:25775
UPC:691514257754
Price:
$121.28 / EA
DESCRIPTION
MegaPress® Pipe Flange, Fitting/Connector Type: Flange, Series: Model 4859.5, 1-1/4 in Nominal, Press, -40 To 180 deg F, Carbon Steel, EPDM Seal, Import
Viega MegaPress® is a carbon steel press system and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress® fittings for black iron pipe reduce installation time and eliminate messy cutting oils.
Specifications
Brand: MegaPress®
Weight: 2.9 lbs
Fitting/Connector Type: Flange
Nominal Size: 1-1/4 in
End Style: Press
Material: Carbon Steel
Seal Material: EPDM
Manufacturer Name: Viega
Temperature Rating: -40 to 180 deg F
Includes: EPDM Sealing Element (Green Dot)
Application: Compressed Air Systems, Chilled Water Systems, Hydronic Heating Systems, Fire Protection Systems, Solar Systems and Low Pressure Steam Systems
Domestic/Import: Import
Country of Origin: DE
Standards and Approvals: ABS Listed | ANSI LC4/CSA 6.32 | ASME B31 | CRN OA14541.6 | CSA B149.1 | FM 1920 | GL Listed | LR Certified | NFPA 13/13D/13R/31/54/58
Item Features
- Makes secure press connections in less than seven seconds
- No oil or heavy threading equipment needed
- Patented Viega Smart Connect® feature
- More than 150 different configurations
- Connections can be made wet or dry
- Carbon steel piping system SCH 5 to SCH 40
